MAX IV Diesel

[countrycummins99]

It ready to go check out specs below and pictures are there as well

[ARGOJIM]

Hope all is good with you two Shawn. Mfenor was talking of building one.

[countrycummins99]

yup all good Jim thanks for asking just not finding the time for the max anymore i really only kept it to go to busco and georges and i havent done either so its time to stop sitting on it

[hipowerone]

countrycummins99: it might be a bit handy to know the location of this offer...cannot discern it from your user profile

[countrycummins99]

sorry its a northeast pa machine

[Tour1]

About how many $ would an interested party be ready to pay? I searched the forum and found a kubota diesel thread but the pictures didn't load. I'm not on Facebook so I didn't try the link. Can you tell me what it weighs, if you know? The weight that matters to me is on-the-trailer, as opposed to loaded for action.

http://www.6x6world.com/forums/max-atvs/27577-kubota-diesel-max-iv.html

[countrycummins99]

update below

[countrycummins99]

FOR SALE MAX IV 6x6 MID ENGINE KUBOTA DIESEL!
What it has done to it
1. Split shifter modification
2. Kubota 22hp Diesel engine swap now mid-engine mounted
3. New primary and secondary drive clutches approx 8 hours on them $500.
4. Fresh rebuilt T20 transmission brand new bands $400.
5. Front suspension seat with 5 point harness with quick release to swap in original front bench for two people.
6. Has Adair external bearing to axle ties including ties all three axles and bearing together outside of machine makes them extremely strong vs factory also has the Adair synthetic bearing blocks.
7. Has internal frame strength blocks that hold the bolts for the the bearing blocks.
8. New radiator and fan assembly.
9. Engine mount is custom designed from 1/2 aluminum angle and fully adjustable.
10. Comes with spare set of splined axles never installed.
11. Front mounted 3000lb superwinch
12. Factor Roll-bar
13. Factory windshield
14. Has all new hoses and fuels lines
15. Has water temp, oil pressure, voltmeter, and amp meter gauges
16. Come with extra synthetic bearing blocks for axles
17. 26inch good year terra tires on 12 inch bead lock wheels
18. Has factory skid plates and tow hitch
19. Factory windshield

I took the machine from the so so thing RI engineered and made it to my spec so I couldn’t break it. I rode it hard anyone who has seen it at Busco knows. It’s truly proven to be an outstanding machine now I just don’t have the time or places to use it anymore. The machine won’t win any beauty contests but mechanically its way better that what it left RI as. Keep the chains adjusted grease the bearings and put fuels in it that’s all there is to do. $5,000 OBO

[countrycummins99]

[countrycummins99]

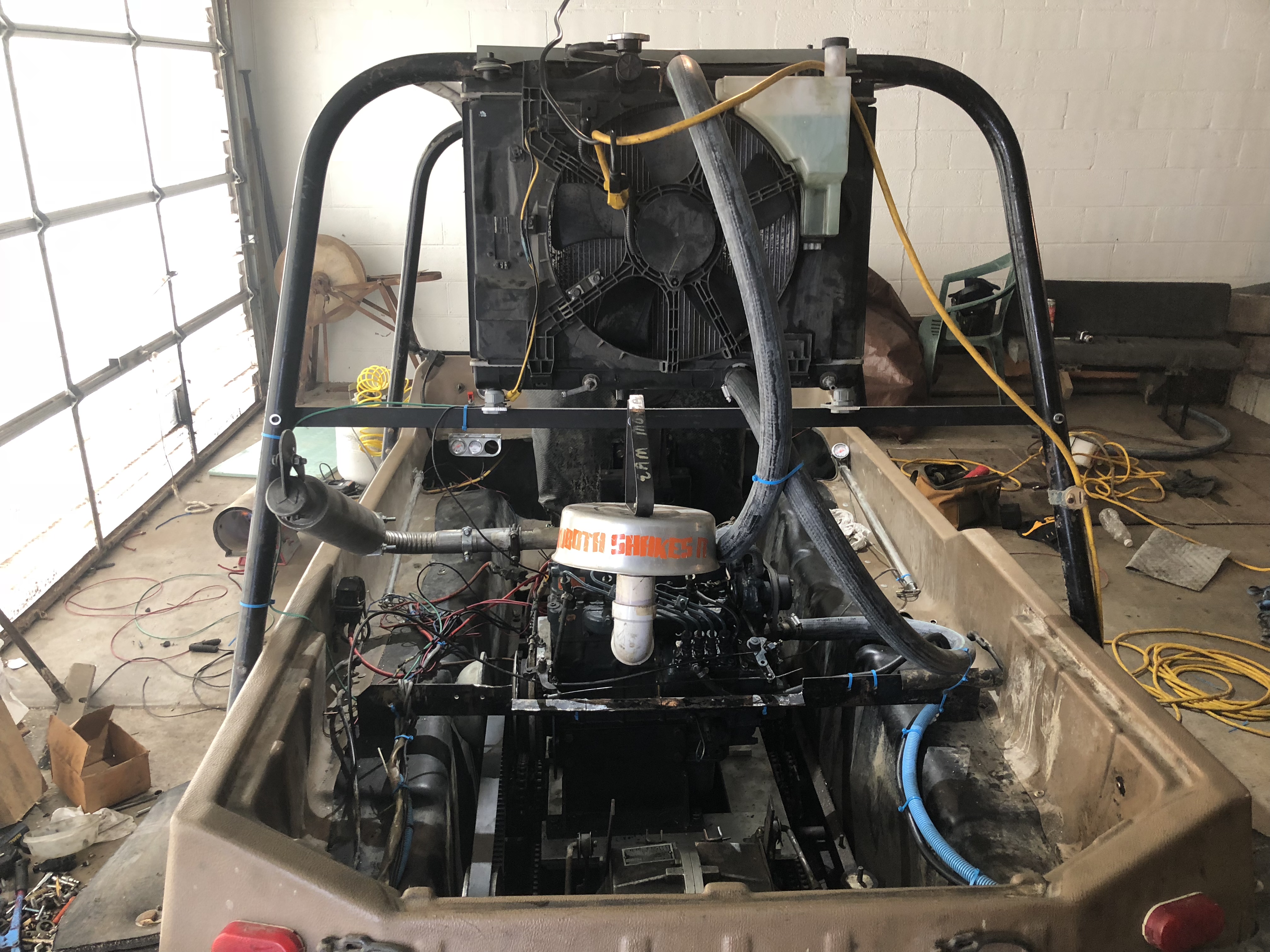

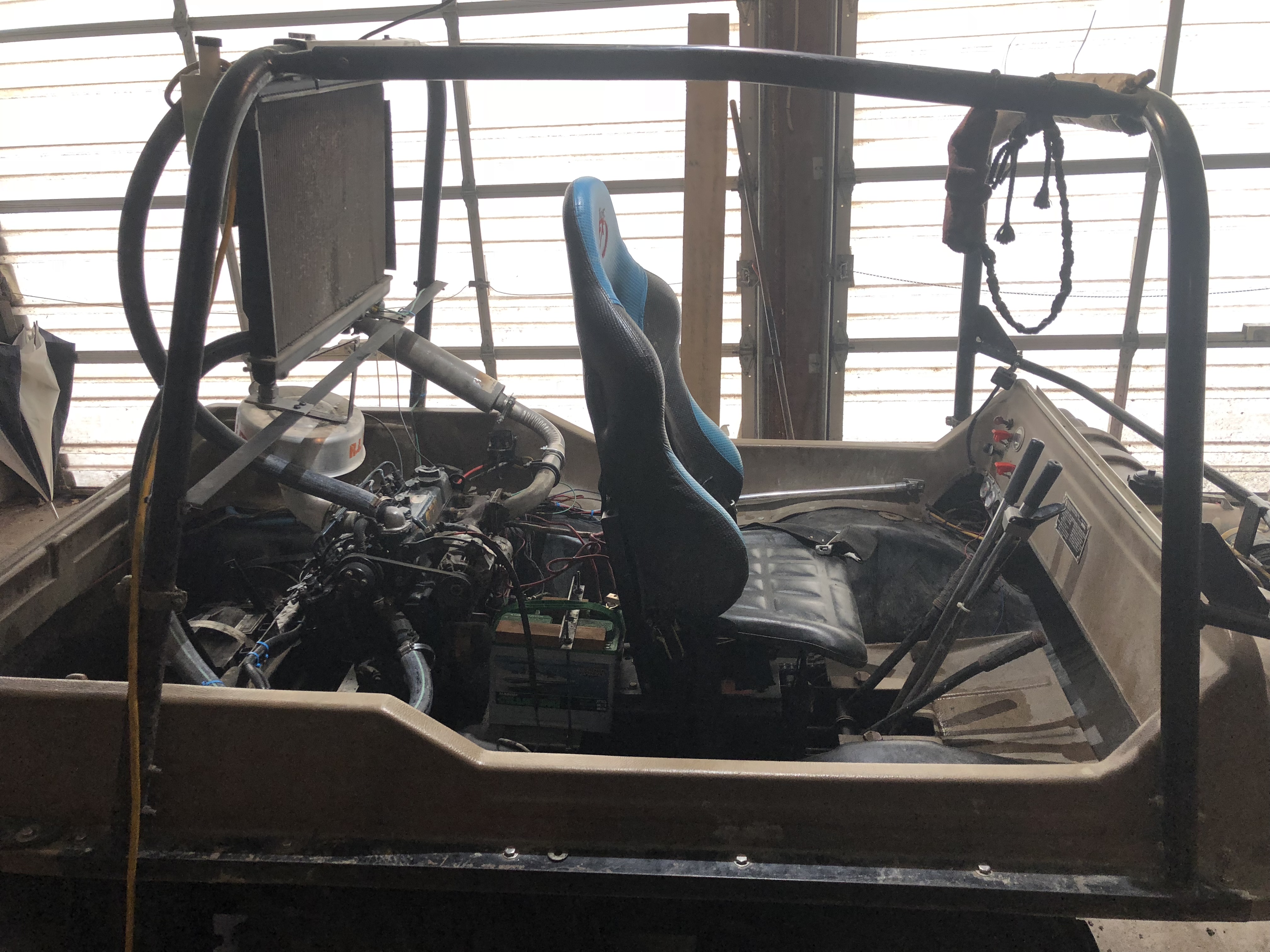

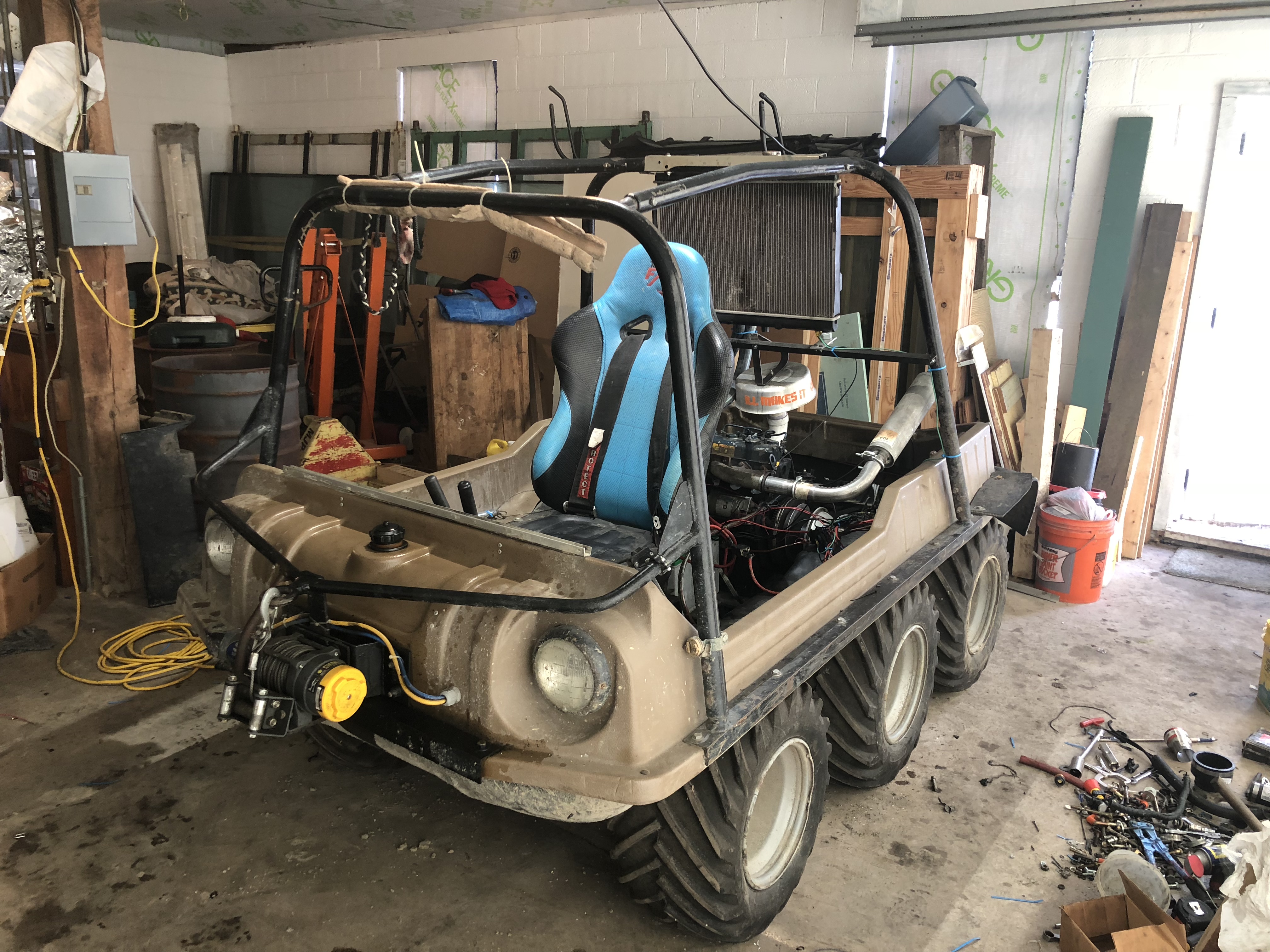

Pics are up let me know if you have any questions

[countrycummins99]

Bump

[carguy]

I know shawn and have gong riding with him many times . His max 1v is a super machine and built like a tank
its like a timex takes a lickin and keeps on tickin

[countrycummins99]

Thanks Steve!! She is one tough machine now!

[countrycummins99]

i cant believe i still have this machine did the market die?

[countrycummins99]

$4800 cash money
