    T20 Mod Help



    Hi Guys

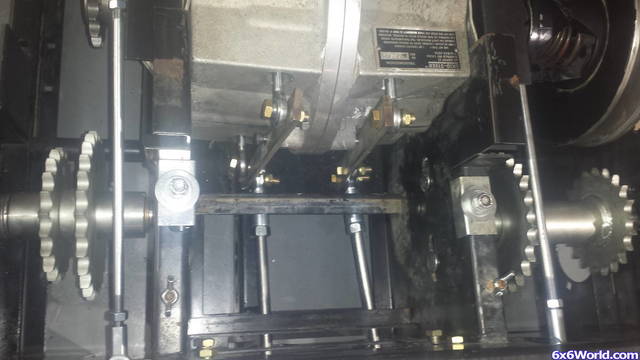

    I recently overhauled my Max and did a mod on the T20. and after 3 hrs I have found an issue. I am using 4 bearing rod ends and 1/4 inch flat bar to replace the U channel and bolts. When I drilled the flat bar for a pivot point I get a lot of binding between the travel. In center position all is good.

    I see that the original U channel bolt holes are elongated to allow some play but using bearing rod ends there is no play.

    it would appear that using bearing rod ends and a pivot point would be simple. not sure what I did wrong.

    I had the pivot point on the T20 area machined to 4 1/2 degrees.

    can someone help me with some specific explanation and maybe pics on how they did there's and then I will be able to figure out what is up with mine.

    Hopefully I explained myself.

    Thanks for any help
    Last edited by garretttpe; 06-11-2015, 12:46 PM. Reason: Added Pic
    Tags: None
  • #2
    Looks like there is a ton of movement there in the hiems.
    sigpic

    My new beer holder spilled some on the trails - in it's hair and down it's throat.
    Joe Camel never does that.

    Advice is free, it's the application that costs.

    Comment

    • #3
      Last edited by Model Citizen; 07-11-2016, 06:15 PM.

      Comment

      • #4
        Eyebolts were my thoughts, had also thought shoulder bolt but lock nut will let it float.
        sigpic

        My new beer holder spilled some on the trails - in it's hair and down it's throat.
        Joe Camel never does that.

        Advice is free, it's the application that costs.

        Comment

        • #5
          Awesome.
          Now I get where I went wrong. thank you all for the responses.

          Larry

          Comment

          • #6
            Things I did wrong on my Mod. hopefully someone will learn by my mistake
            1. I drilled the T20 case first and then tried to drill my 1/4 stock to match. Drill 1/4 stock or channel and case at same time to insure all is in line.
            2. elongate the plunger attach hole to aprox .625 inch. I did not elongate my holes and binding happened from neutral forward and neutral rearward.

            Follow the simple instruction that other people have done, which I didn't and you wont have the issue I had.

            Larry
